How to Use Drill Chuck: Keyed & Keyless Tips

What Is a Drill Chuck and Why It Matters

A drill chuck is the clamp at the front of your drill that holds bits securely in place. It transfers rotational force from the motor to the bit, making precise work possible. Understanding its operation is the first step toward safer, more efficient drilling.

Many people overlook the chuck until a bit slips or wobbles. A properly tightened chuck prevents runout and ensures clean holes. You can learn the basics of drill chuck anatomy to see how the jaws and collar work together.

Whether you own a compact cordless drill or a heavy duty drill press, the chuck is the critical link. Treat it well and it will deliver years of reliable service. Ignoring its mechanics often leads to frustration and damaged workpieces.

Types of Drill Chucks: Keyed vs Keyless

Drill chucks fall into two main categories: keyed and keyless. A keyed chuck uses a separate tool, called a key, to tighten or loosen the jaws. Keyless chucks are operated by hand, offering speed and convenience. Each type has its own strengths.

Keyed chucks provide a more powerful grip, making them the top choice for heavy duty metalworking and drill presses. You insert the key into a geared collar and turn it to apply high torque. This design greatly reduces the chance of a bit slipping under heavy load.

Keyless chucks are the standard on most modern cordless drills. You simply twist the outer sleeve by hand to open or close the jaws. They excel in rapid bit changes, ideal for tasks like pilot hole drilling and screw driving. A quick look at top rated drill drivers shows how popular this system has become.

Keyless Drill Chuck Variations and Features

Not all keyless chucks are the same. Single sleeve designs require you to hold the spindle while tightening, which can be awkward on some drills. Double sleeve models let you tighten using both hands, a more natural motion that often creates a more secure hold.

Self tightening keyless chucks use the drill’s rotation to lock the bit even tighter during use. This is especially helpful when drilling through tough materials like metal or dense hardwood. You will find these on many high end hammer drills and screwdriver combos.

Mini chucks are another variation, designed for small rotary tools and impact drivers. They hold tiny bits for delicate work like jewelry making or circuit board repair. Their narrow profile makes them easy to manoeuvre in tight spots.

Understanding Drill Chuck Sizes and Mounts

Chuck size refers to the maximum bit shank diameter it can grip. Common sizes are 1/4 inch, 3/8 inch, 1/2 inch, and 5/8 inch. A 1/2 inch chuck is versatile for general home and automotive use. Heavy duty drill presses often use 5/8 inch chucks.

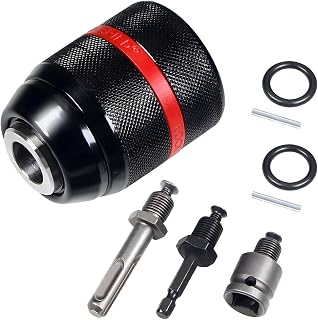

The mounting method is equally important. Most hand drills use a threaded mount, like 1/2 20 UNF, while drill presses use a Morse Taper (MT) or R8 shank. Using an incompatible mount will prevent the chuck from seating properly, causing dangerous wobble.

Impact driver chucks feature a 1/4 inch hex shank for quick connect collets. These adapters let you use standard round shank bits in an impact driver. Always verify the mount type before purchasing a replacement or adapter chuck.

Essential Safety Precautions Before Using a Drill Chuck

Safety must come first. Always unplug the drill or remove its battery before changing bits or adjusting the chuck. Never leave a chuck key in the chuck, the key can become a dangerous projectile when the drill powers on. Secure loose clothing and tie back long hair.

Wear eye protection, work gloves, and a dust mask for dusty materials. The OSHA power tool safety guidelines recommend inspecting the chuck for cracks, burrs, or excessive wear before each use. A damaged chuck can shatter under torque.

Double check that the bit is centered and fully seated before tightening. Even a slight misalignment will cause wobble and break the bit. Start the drill at a slow speed to confirm the bit runs true, then increase the speed as needed.

How to Use a Keyed Drill Chuck: Step by Step

First, open the jaws wide enough to accept the bit by turning the key counterclockwise. Insert the bit fully into the chuck, then slide it back out about 1/16 inch to prevent bottoming out. Tighten by hand initially to hold the bit in place.

Insert the chuck key into one of the collar holes. Turn the key clockwise to tighten the jaws onto the bit. For maximum grip, use all three key holes sequentially, tightening each one. This equalizes pressure and centers the bit perfectly.

Avoid using pliers or a cheater bar on the key, you can damage the gear teeth. When you feel firm resistance, the bit is secure. Remove the key immediately and store it in its designated holder. Test the grip by gently tugging the bit.

How to Use a Keyless Drill Chuck: Step by Step

Grip the rear collar, if present, to lock the spindle, then rotate the front sleeve counterclockwise to open the jaws. On single sleeve chucks, hold the drill firmly and twist the sole sleeve. Slide the bit in until it is fully seated.

Rotate the sleeve clockwise to tighten. Continue twisting until you hear or feel a series of clicks. This ratcheting mechanism prevents over loosening and signals that the chuck is tight. For extra security on smooth shank bits, give the sleeve a final firm twist by hand.

If your chuck has a spindle lock button, press it while tightening for extra leverage. Always test the grip by running the drill briefly at low speed to watch for wobble. If the bit slips, stop immediately and retighten more firmly.

Mounting a Drill Chuck on an Impact Driver

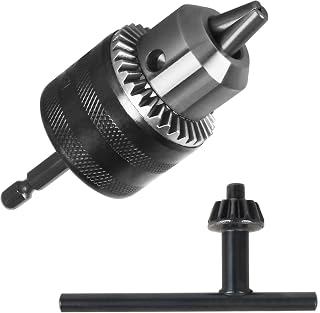

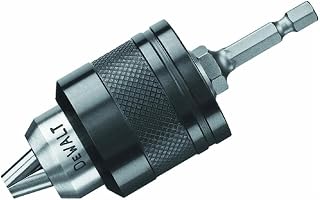

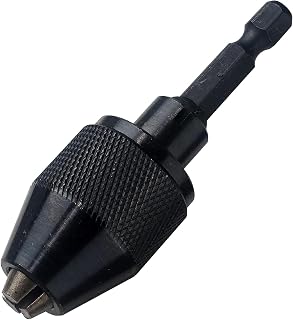

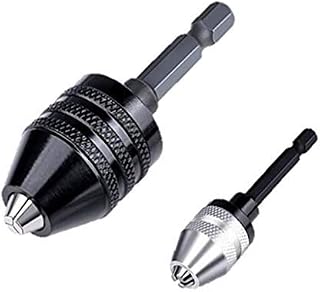

Impact drivers lack a traditional chuck, but you can add one with a quick connect adapter. Choose a 1/4 inch hex shank chuck designed for impact use. Snap the adapter into the driver’s collet just like a standard bit. Listen for a solid click.

Once attached, use the keyless collar on the adapter to tighten around your drill bit. These adapters are perfect for light duty drilling in wood, drywall, and thin metal. They are not intended for hammer drilling or large diameter holes.

Because impact drivers deliver bursts of torque, check the adapter’s tightness frequently. The vibration can loosen the chuck collar over time. Retighten every few minutes and always wear safety goggles to protect against flying debris.

Common Mistakes When Using a Drill Chuck

One of the biggest mistakes is leaving the chuck key inserted. The key can fly out violently, causing serious injury. Always make it a habit to remove the key immediately after tightening and place it in a magnetic holder on the drill or the bench.

Another error is using the wrong size chuck for the bit. Forcing a large shank bit into a small chuck damages the jaws. Conversely, clamping a tiny bit in a big chuck off center leads to wobble and poor precision. Match the capacity to the task.

Over tightening a plastic collar keyless chuck by using tools instead of your hand can crack the housing. If you need extreme grip, switch to a keyed metal chuck. Hand pressure is sufficient for nearly all keyless applications.

Drill Chuck Maintenance and Longevity Tips

Keep the chuck clean. Dust, metal shavings, and wood chips can pack into the jaw mechanism and cause stiffness. Blow it out with compressed air after each heavy session and occasionally wipe the jaws with a dry cloth. Avoid using grease, which attracts grit.

Lubricate sparingly with a light machine oil on the threads or sleeve only if the action becomes sticky. Open the jaws fully, apply a single drop, then work the mechanism to distribute the oil. Wipe away any excess to keep it from getting onto your workpiece.

Inspect the jaws for wear. Chipped or uneven jaws will not grip bits securely. If you see visible damage, replace the chuck. For drill presses, ensure the taper mount is clean and dry before installing, any dirt can throw the chuck out of alignment.

Selecting the Right Drill Chuck for Your Project

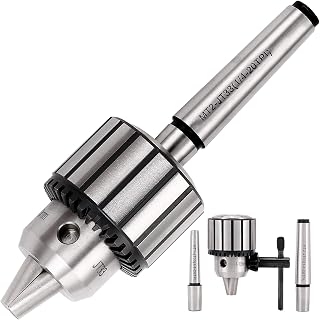

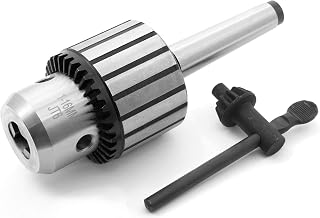

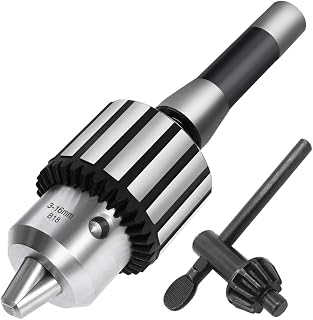

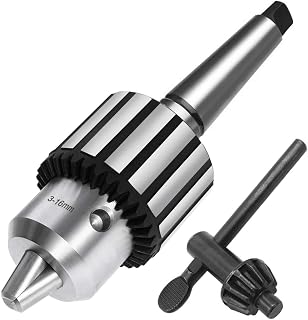

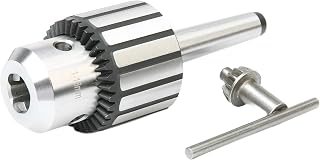

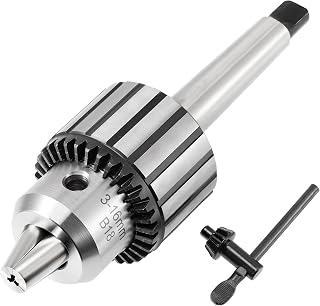

For precision work on a drill press, a high quality keyed chuck with an MT2 or R8 arbor is the gold standard. The mechanical advantage of the key gives an unshakeable hold. Choose a 5/8 inch capacity for large bits and heavy drilling.

For everyday cordless drill use, a 1/2 inch keyless chuck with ratcheting lock is the best all rounder. It handles most tasks at home and on the jobsite. If you frequently swap between bits, a double sleeve self tightening model will save time and frustration.

If you only own an impact driver, a quick connect adapter chuck is a smart, affordable addition to your kit. It gives your impact driver the ability to use standard bits without buying a separate drill. Look for a model with a knurled grip for easier manual tightening.

Frequently Asked Questions About Drill Chucks

Why does my drill chuck keep slipping?

Slipping usually means the jaws are worn, the bit is undersized, or the chuck is not tight enough. Clean the jaws, tighten fully, and if the problem persists, try a new bit with a properly sized shank.

Can I use a keyless chuck on a drill press?

Yes, but a keyed chuck is preferred for heavy loads. A keyless chuck may loosen under the high torque of a drill press. If you use one, tighten it with extra force and check it often.

How do I remove a stuck chuck?

For a threaded chuck, insert a hex key into the chuck and strike it sharply counterclockwise. For a Morse Taper, use a drill chuck removal wedge kit. Never hammer directly on the chuck body.

Conclusion: Master Your Drill Chuck Skills

Learning how to use drill chuck properly is a foundational skill that improves every project. From selecting the right type and size to following safe tightening routines, each step ensures accurate holes and longer tool life. Practice these techniques until they become second nature.

Remember the key differences: keyed chucks deliver brute gripping force for heavy metal work, while keyless chucks give you speed for repetitive tasks. Impact driver adapters bridge the gap. Keep your chuck clean, inspect it often, and never leave the key in place.

With the right chuck and proper use, you will enjoy cleaner holes, fewer broken bits, and safer work sessions. Explore our detailed guides for more tips on tool setups and accessories. The confidence you gain will show in every drill stroke you make.
