How to Use a Portable Drill Guide for Perfect Holes

A portable drill guide turns your hand drill into a compact drill press you can take anywhere. It ensures perpendicular holes, accurate angles, and repeatable depth. This tool saves time while reducing costly mistakes on furniture or cabinetry projects. Mastering its use will instantly upgrade the precision of your DIY skills.

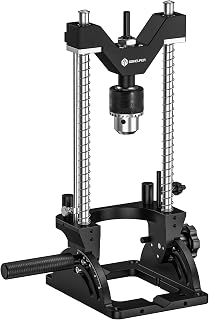

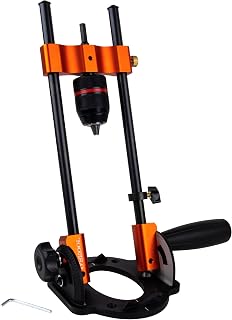

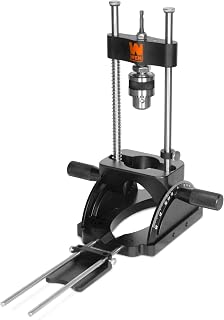

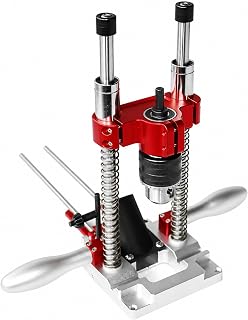

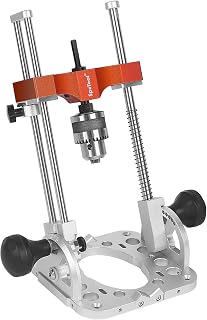

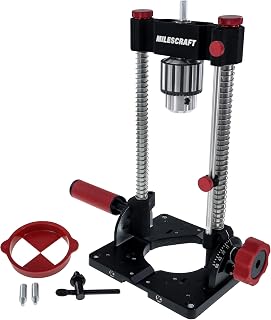

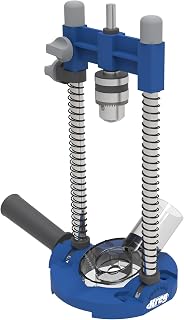

What Is a Portable Drill Guide?

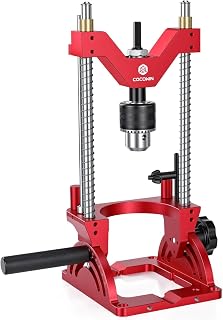

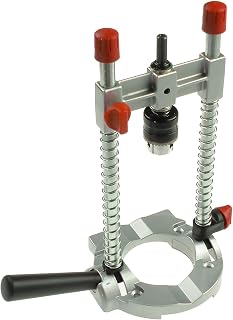

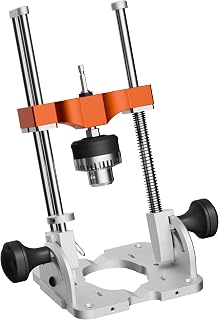

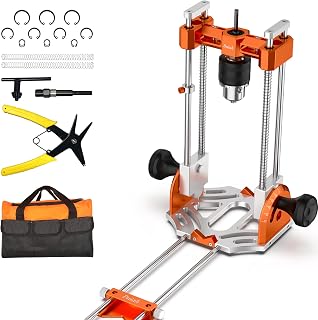

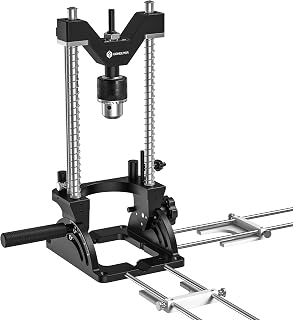

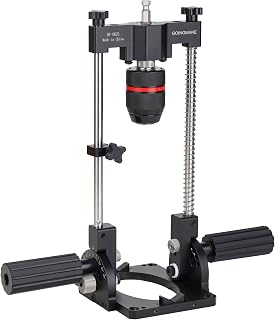

A portable drill guide is a frame that holds your drill and slides on precision rods or rails. It features a chuck that grips the bit and a base that rests on the workpiece. Most models adjust from 0 to 60 degrees so you can drill straight or angled holes. This transforms a handheld drill into a stable, accurate machine without the bulk of a full-size drill press.

Top Benefits of Using a Portable Drill Guide

A drill guide guarantees perfectly perpendicular holes every time, eliminating guesswork. It also locks in precise angles for joinery, doweling, or angled bracket installations. Portability lets you work on large panels, doors, or even fence posts without moving the workpiece. This combination of accuracy and convenience makes it essential for serious hobbyists and pros, explore the best portable drill guide reviews to see top picks.

Essential Tools and Safety Gear

Alongside your drill guide, gather a quality drill, sharp bits, clamps, and a square for verification. Wear safety goggles to protect your eyes from flying chips and dust. A dust mask and hearing protection add comfort during prolonged use. Keep the workspace clean and well lit to maintain full control over every plunging motion.

Unboxing and Initial Assembly

Remove all components from the box and check them against the manual. You should see the base, guide rods, chuck assembly, springs, and mounting collar. Lubricate the rods lightly if they feel stiff, using a dry Teflon spray. Then slide the carriage onto the rods gently to avoid scratching the linear bearings or bushings.

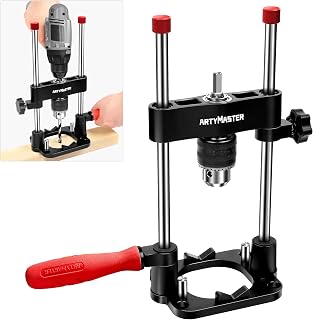

How to Attach Your Drill to the Guide

Loosen the collar clamp and slide your drill body into the mount. The drill’s chuck must align with the guide’s chuck or coupling system. Tighten the collar firmly but avoid overtightening plastic parts. Secure the drill’s auxiliary handle if present, as it adds stability and reduces torsional twist while drilling.

Setting the Drilling Depth and Stop Collar

Adjust the depth stop rod or collar on the guide to control how far the bit travels. Mark the desired depth on the workpiece and lower the bit until the tip touches the mark. Lock the stop collar at that position. This prevents drilling through the material and ensures identical depth across multiple holes.

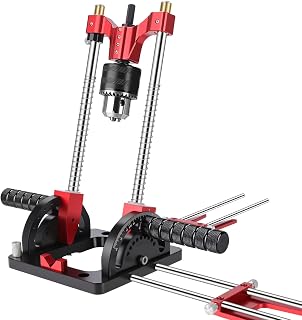

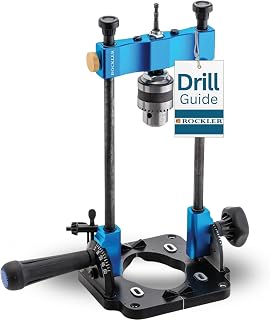

Adjusting the Angle for Versatile Drilling

Loosen the angle locking knobs and tilt the base plate to your desired degree marking. Most guides feature a scale ranging from 0 to 60 degrees. Use a digital angle finder for critical angles, as built-in scales can be less precise. Tighten the locks securely before drilling so the setting does not drift under vibration.

Drilling Perfectly Straight Holes in Wood

Set the base angle to 0 degrees and clamp the guide firmly to the workpiece. Align the center mark with the bit tip using a center punch divot. Start the drill slowly, letting the bit bite gently before increasing speed. Maintain even downward pressure and allow the springs to retract the bit cleanly at the end of the stroke.

Straight Hole Drilling in Metal and Plastic

Use a center punch to create a starting point on metal surfaces to stop the bit from wandering. Apply a few drops of cutting oil for clean holes and extended bit life. Clamp the material tightly to prevent lifting, especially when drilling sheet metal or acrylic. Feed at a moderate, consistent pace and allow the chips to clear freely.

Using the Base for Edge Stability

When drilling near the edge of a board, position the base so the bit lands fully on the stock. Some guides include removable fence plates for alignment with the edge. Double-check that the base is flat on the surface to maintain the angle setting. A small C-clamp across the base wings adds extra stability during the bore.

Clamping and Securing Your Workpiece

Never hold the workpiece by hand when using a drill guide, the torque can spin the piece. Use bar clamps or quick grips to fasten the stock to a bench. Align the drill guide base with the layout lines and clamp it down as well. A stable setup keeps both hands free to operate the drill smoothly and safely.

Choosing the Right Drill Bit

Select brad point bits for wood to get clean entry holes with minimal tear out. For metal, use high speed steel or cobalt bits designed for the alloy. Ensure the bit shank matches the chuck capacity, typically up to 1/2 inch. Consult the drill bit guide to match bit type with your material for best results.

Preventing Tear Out and Splintering

Place a sacrificial backer board beneath the workpiece to support the exit fibers. Use sharp bits and slow the feed rate as the bit breaks through the bottom face. Masking tape over the cut line also reduces surface splintering in veneered plywood. The drill guide’s rigid hold helps you apply less lateral force that causes blowout.

Multi Angle Drilling for Strong Joints

Angle drilling is crucial for creating pocket holes, angled tenons, or attaching legs to furniture aprons. Set the base to the required angle, usually 15 degrees for pocket screws, and lock it. Double-check the angle with a protractor, then drill slowly to maintain the trajectory. The consistent angle ensures screws pull the joint tightly without misalignment.

Using a Drill Guide for Pocket Holes

Even without a dedicated pocket hole jig, a drill guide can create angled sockets. Set the base to 15 degrees, position the bit close to the edge, and secure the guide with a fence. Drill the stepped hole first with a larger bit for the screw head, then finish with the pilot size. This method works well for face frames and cabinet repairs.

Precision Doweling with a Drill Guide

Drill matching dowel holes by setting the guide to 0 degrees and indexing from a reference edge. Use a fence or stop block to position the guide identically on both mating pieces. For blind dowels, set the depth stop to control hole length. This technique creates invisible wood joints that are as strong as traditional mortise and tenons.

Cleaning and Lubricating the Guide Rods

Dust and wood resin can build up on the steel rods and cause binding. Wipe them down after each project with a dry cloth. Apply a thin film of dry lubricant or paste wax rather than oil to keep debris from sticking. Smooth rod movement ensures the chuck returns to the top consistently, preserving hole alignment.

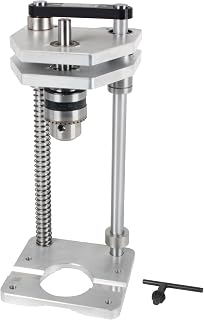

Spring Return vs. Leadscrew Mechanisms

Some models rely on dual springs to pull the carriage back after drilling, offering a quick, light feel. Others use a threaded leadscrew that provides continuous downward pressure, ideal for metal. Spring guides are faster for repetitive wood holes, while leadscrew designs give controlled feeding on tough materials. Choose based on your typical projects.

Portable Drill Guide vs. Drill Press Comparison

According to This Old House, portable drill guides bring press-like accuracy to jobsites where a floor standing press cannot go. A guide is lighter, easier to store, and excels on large sheets. Drill presses, however, offer more power and deeper throat capacity for thick stock. For field work and everyday joinery, the portable guide wins on convenience.

Common Mistakes and How to Avoid Them

One frequent error is forgetting to lock the angle knobs, causing the base to shift mid-bore. Skipping the center punch leads the bit to skate on smooth surfaces. Overaggressive feeding can bog the drill and burn wood or work harden metal. Always let the bit do the cutting and verify all locks before pulling the trigger.

Storage and Portability Tips

Keep the guide in its original case or a padded tool bag to protect the rods from dings. Remove the drill when transporting to avoid stress on the mounting bracket. Store in a dry environment to prevent rust on steel columns and chuck jaws. A quick wipe with an oily rag protects bare metal parts between uses.

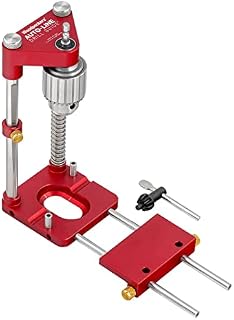

Upgrading with Fences and Accessories

Add an aftermarket fence to your drill guide base for repeatable hole spacing along a row. Some fences accept stop blocks that slide on a T-track, making shelf pin drilling effortless. A sacrificial insert under the base preserves the metal face when through-boring. These small upgrades turn a simple guide into a flexible manufacturing station.

Safety Best Practices

Keep loose clothing and jewelry away from rotating parts before starting the drill. Ensure the trigger lock is off and you have full control over the power switch. Unplug the drill or remove the battery when changing bits or adjusting the guide. Secure long hair and wear non-slip footwear for stable footing during repetitive operations.

FAQ: Your Portable Drill Guide Questions Answered

Can I use a cordless drill with a guide?

Yes, most guides accept any drill with a cylindrical body collar. Just ensure the battery does not obstruct the travel path.

What is the maximum bit size?

Typical chucks hold up to 1/2 inch shank bits. Larger reduced-shank Silver and Deming bits might fit if the guide’s throat clearance allows.

How do I maintain accuracy?

Regularly clean and lubricate rods, check base squareness, and tighten all pivot bolts. Recalibrate the angle scale with a machinist square.

Final Thoughts and Next Steps

Learning how to use portable drill guide opens a new level of craftsmanship for any DIYer. Practice on scrap wood to build confidence with angle settings and depth stops. Once comfortable, tackle shelving, furniture joinery, and metal brackets with manufacturer precision. Pair your guide with sharp bits, good clamps, and patience, and you will produce flawless results every time.
